Tube Wheel

Product origin Guangrao County, Shandong Province
Delivery time Within 30 days
Supply capacity Factory Direct Supply

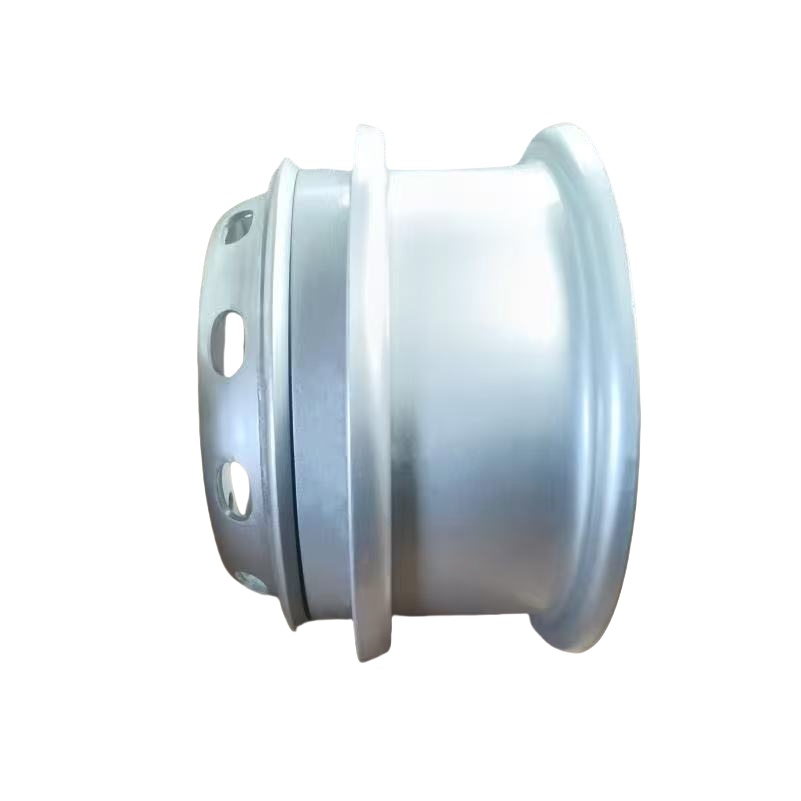

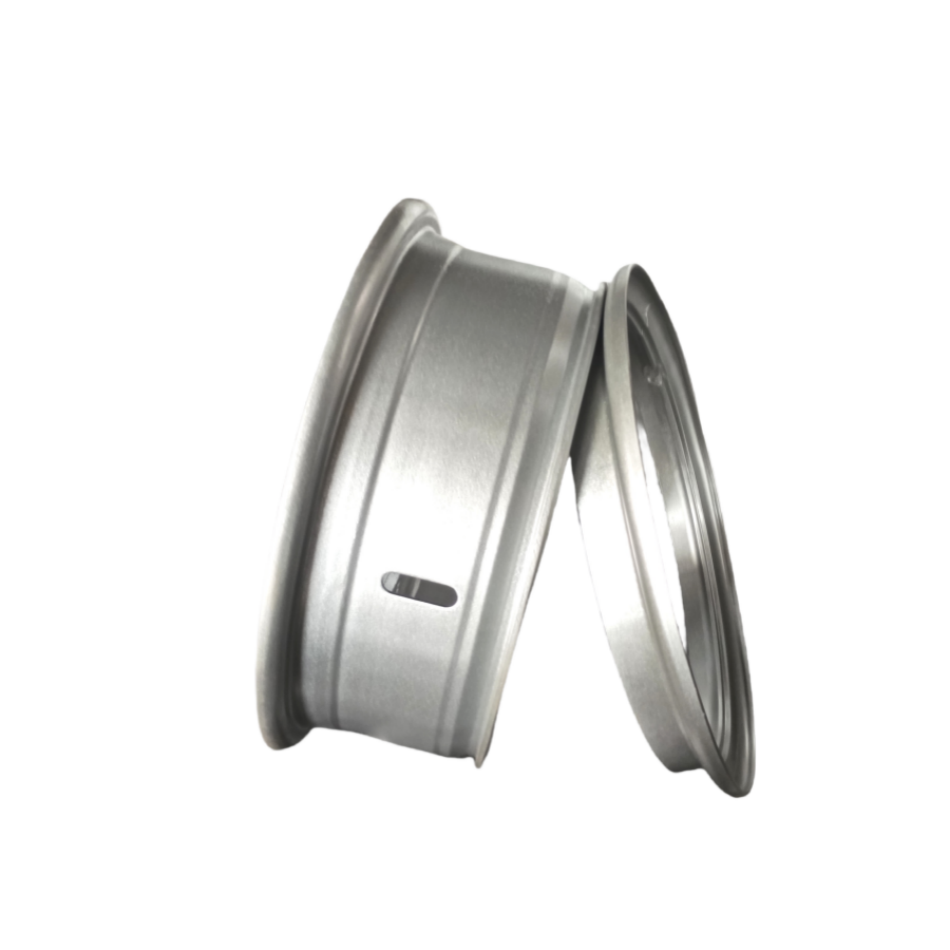

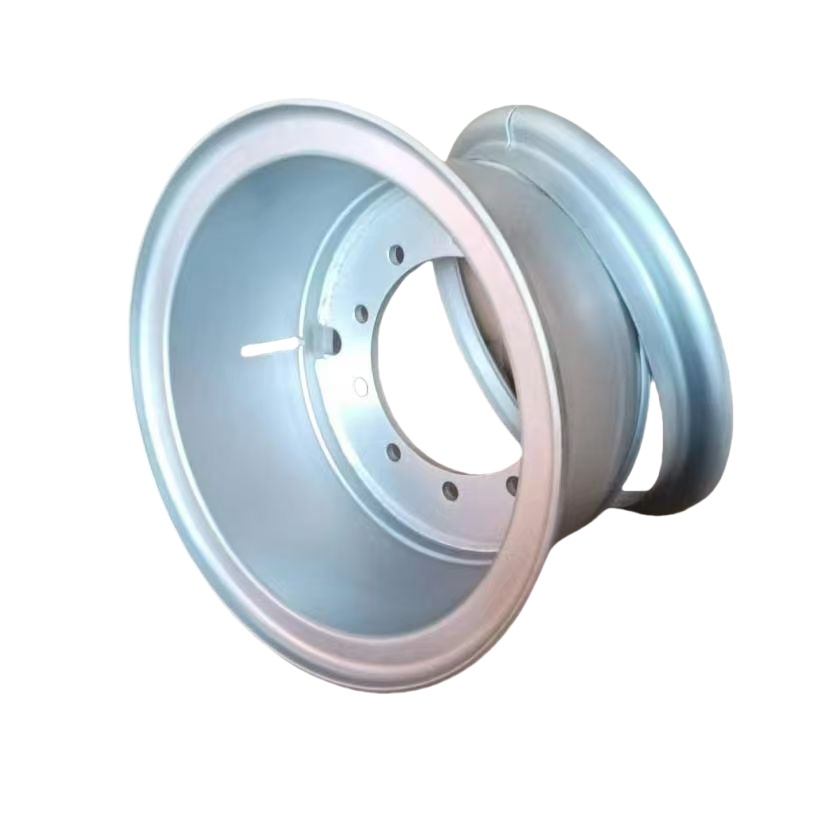

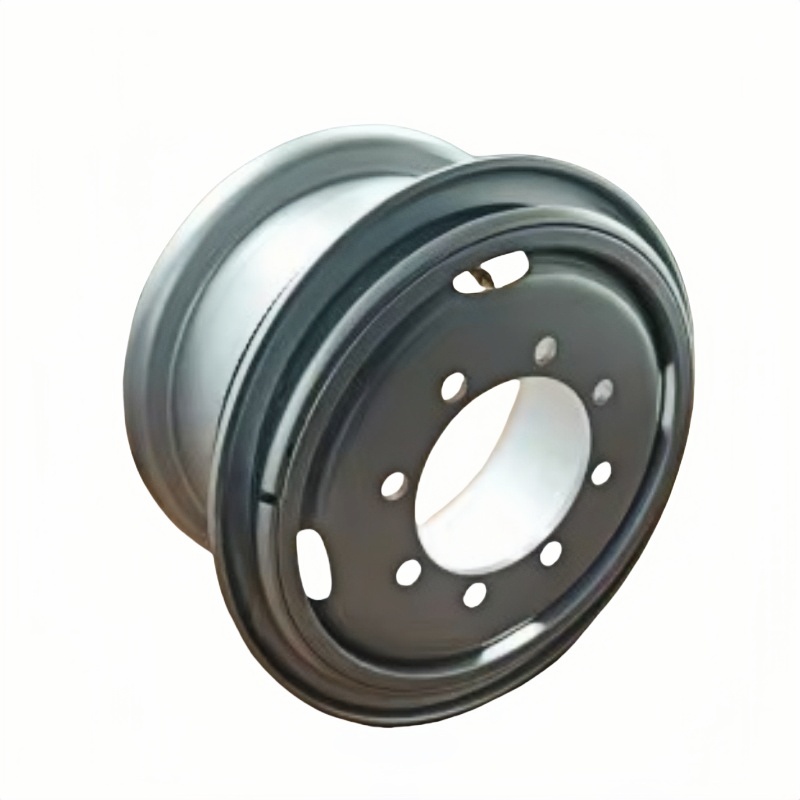

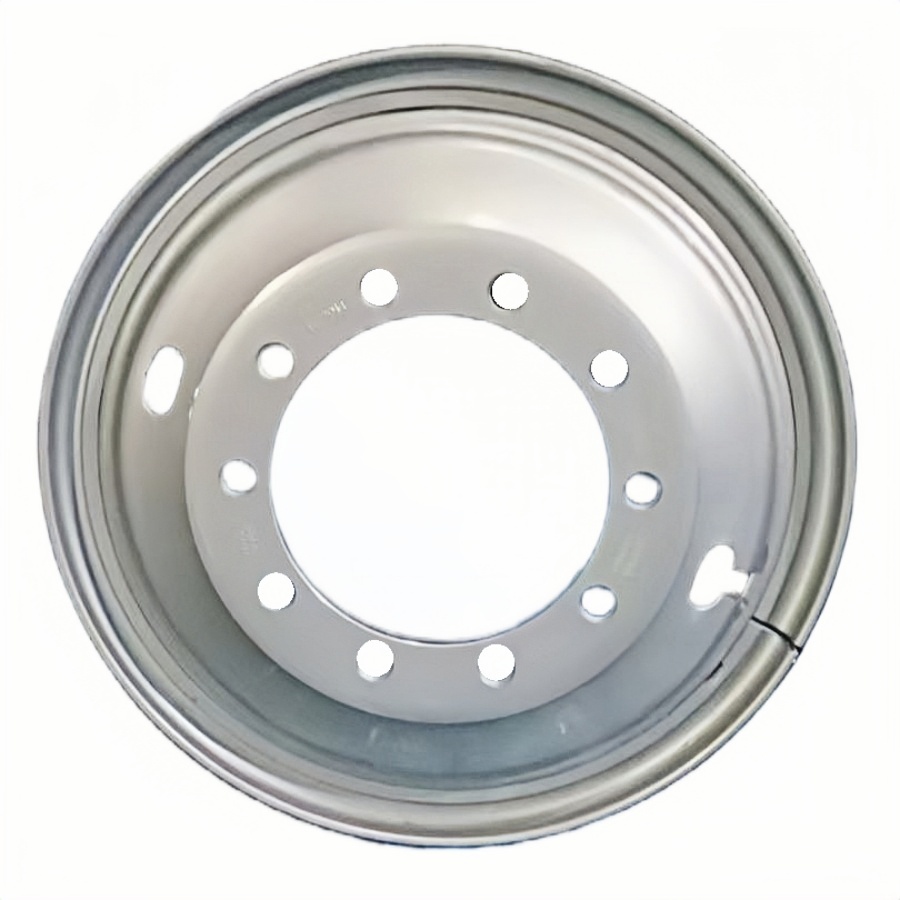

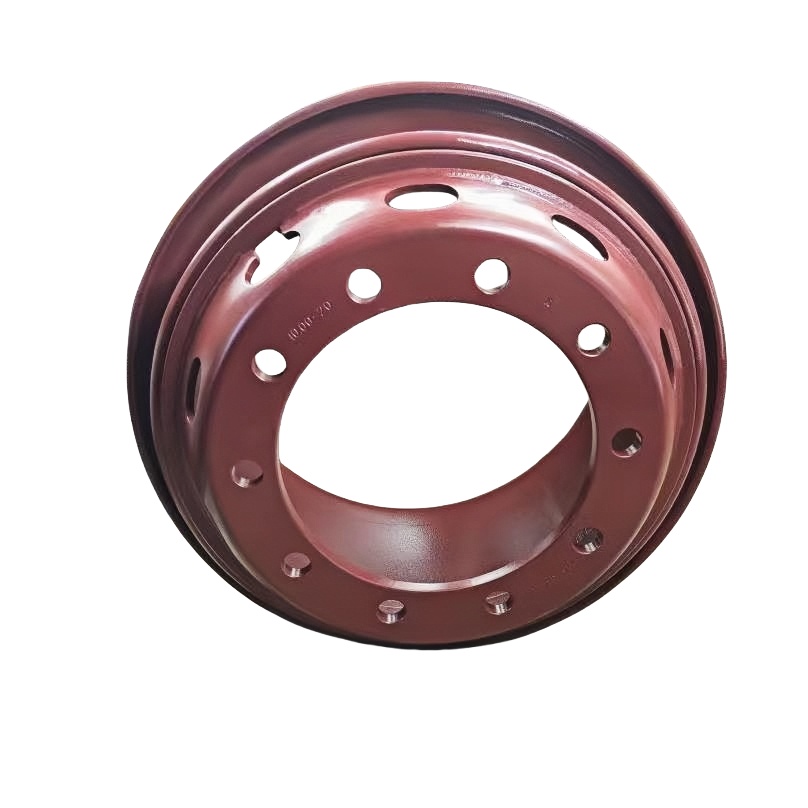

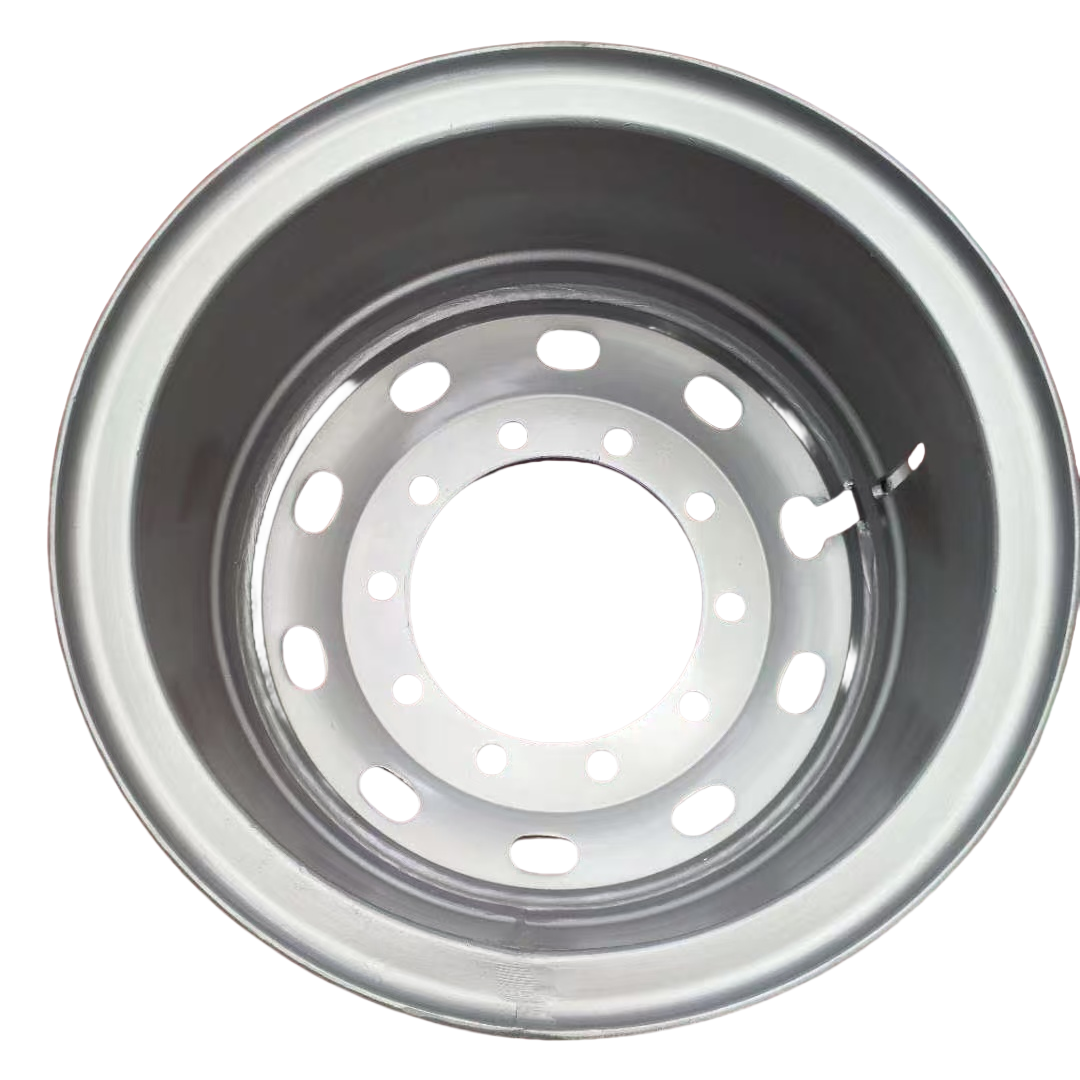

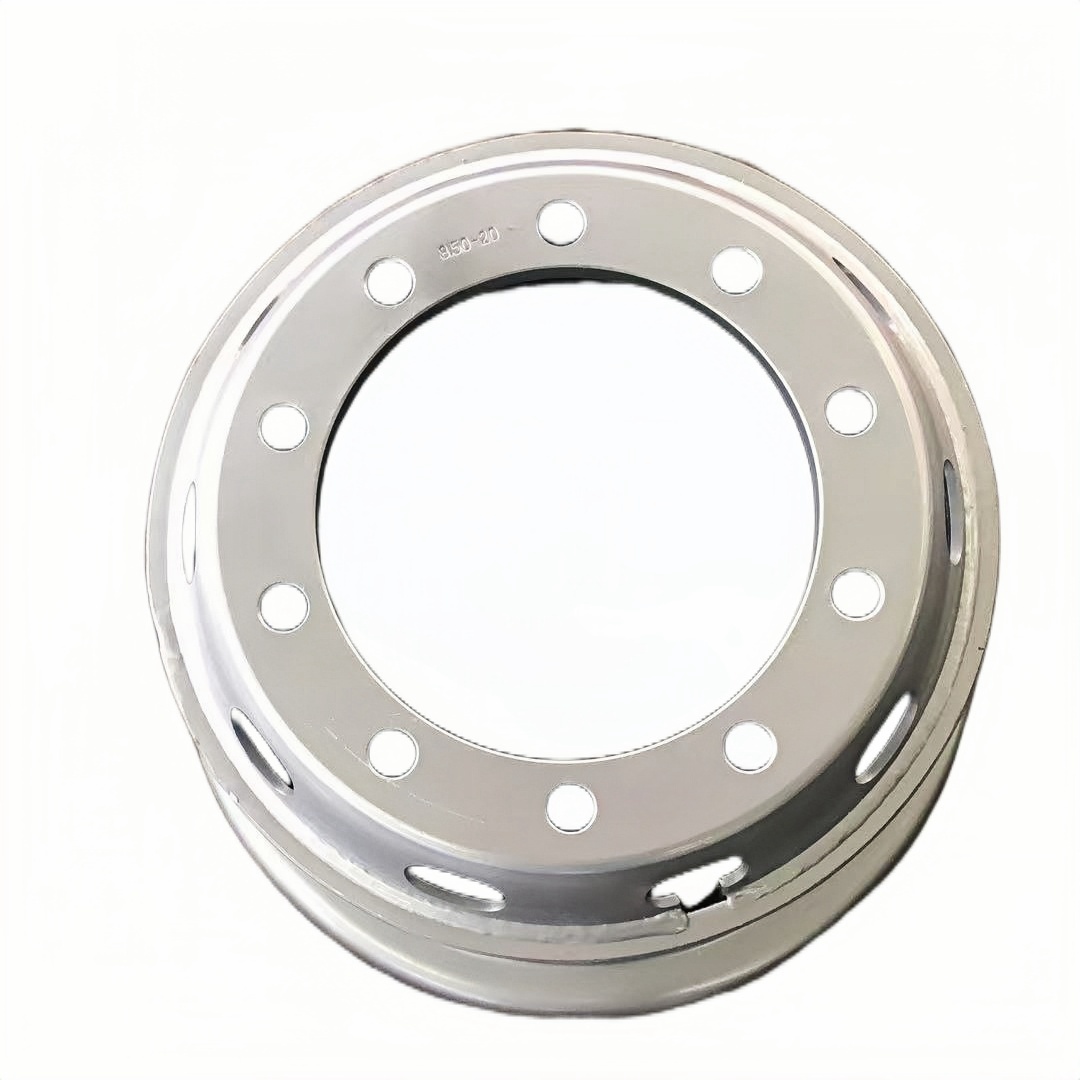

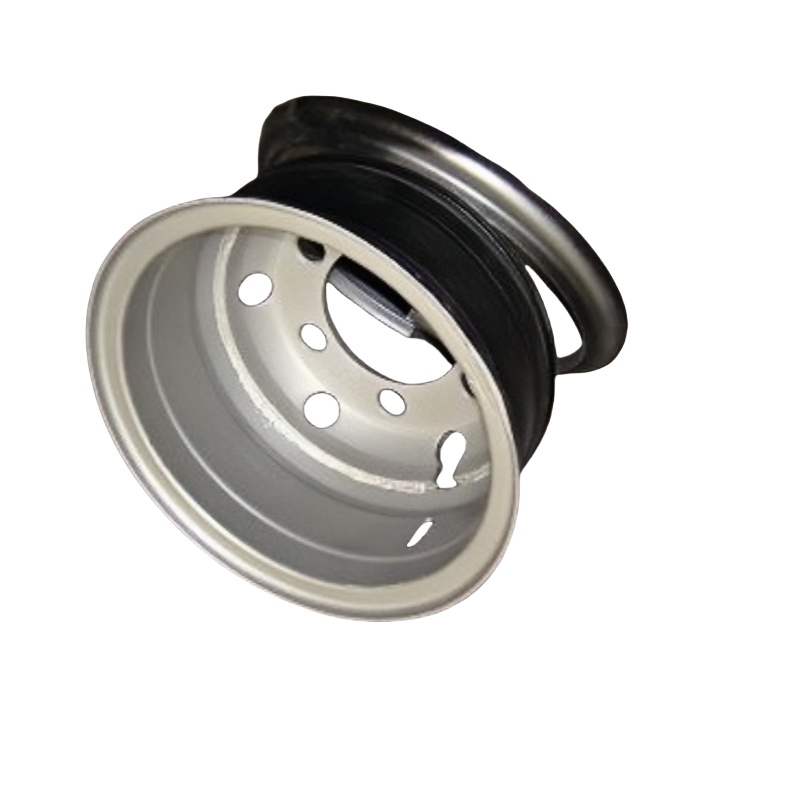

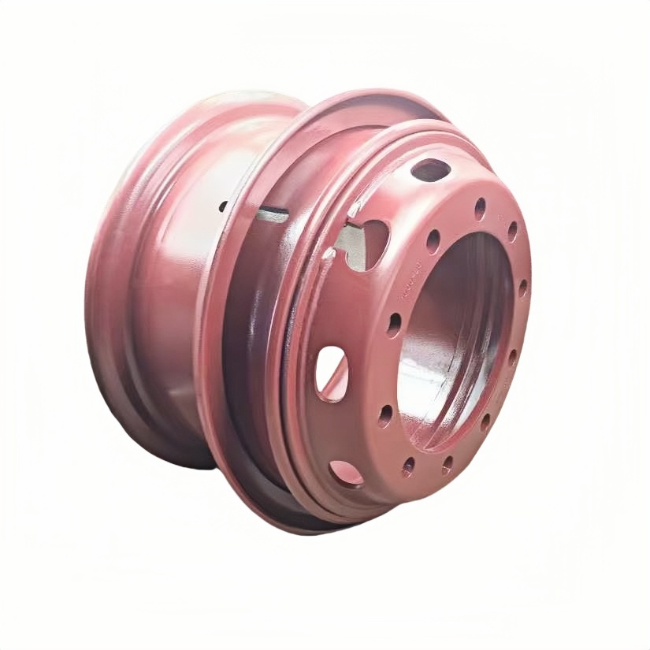

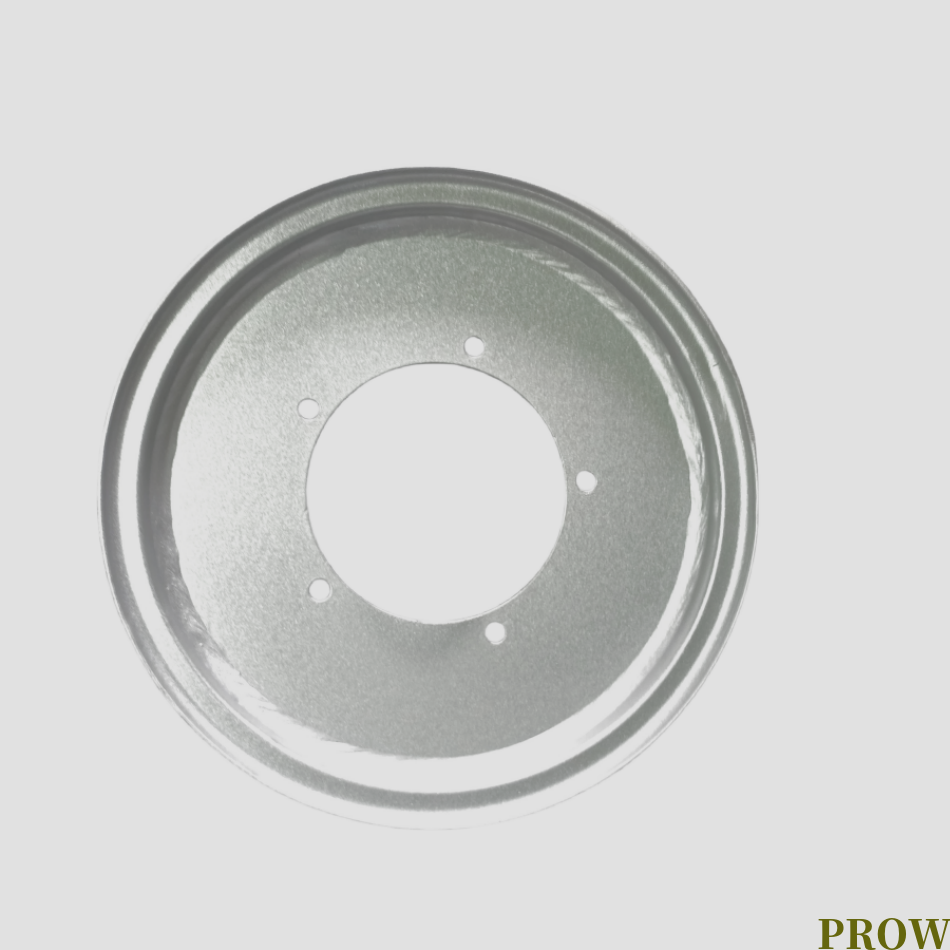

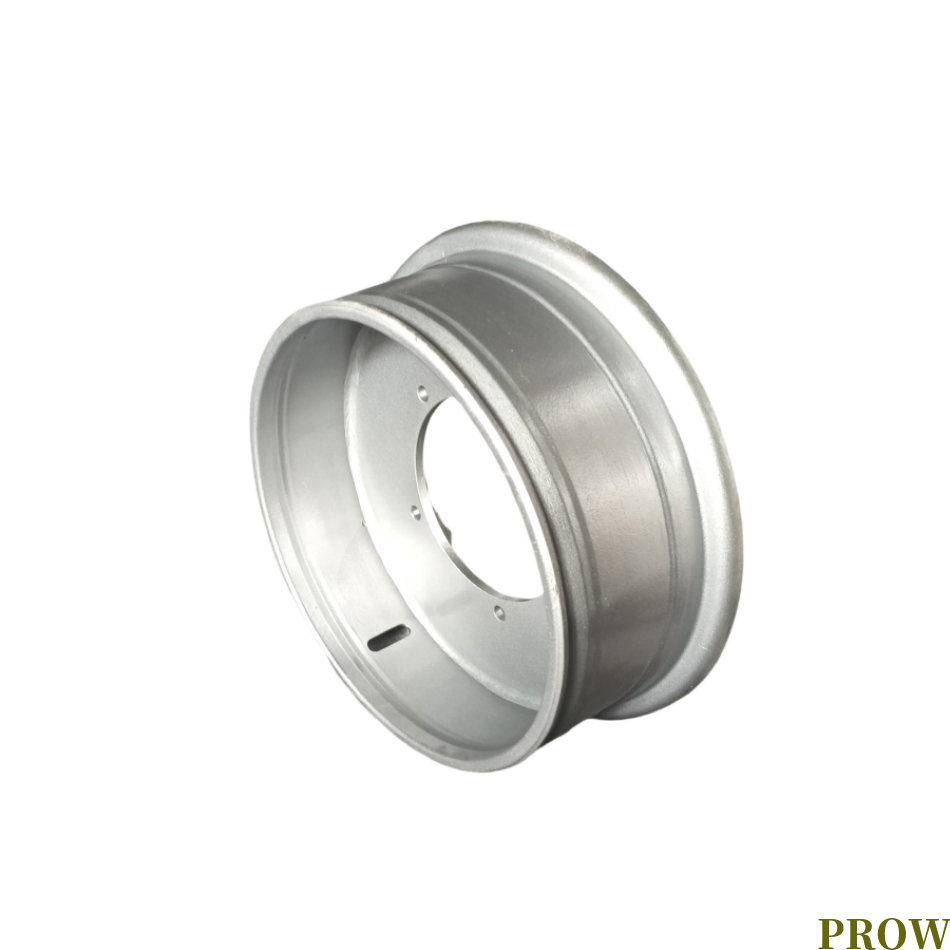

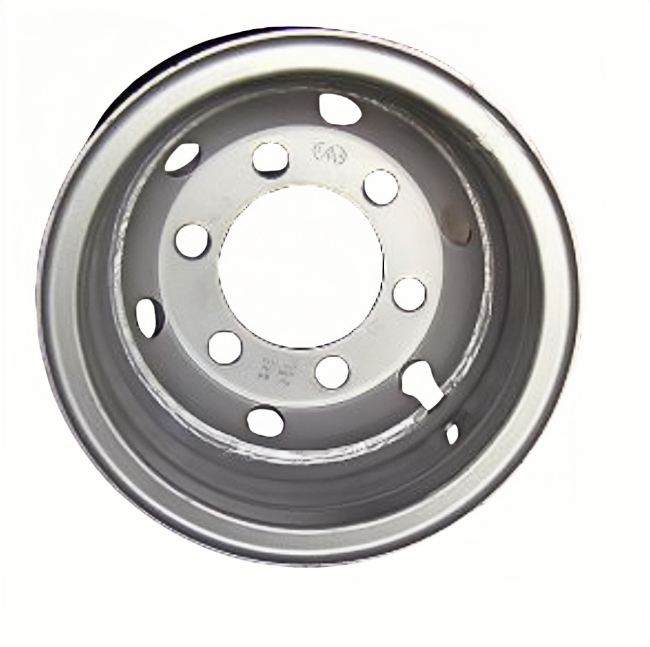

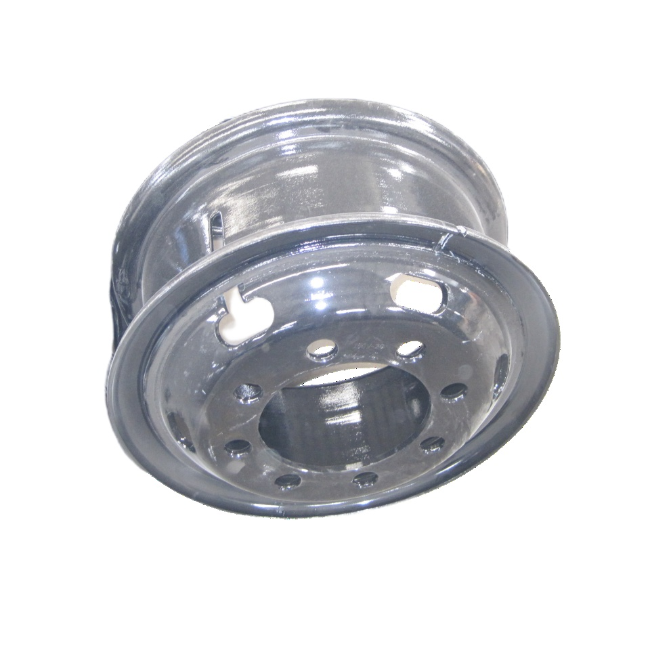

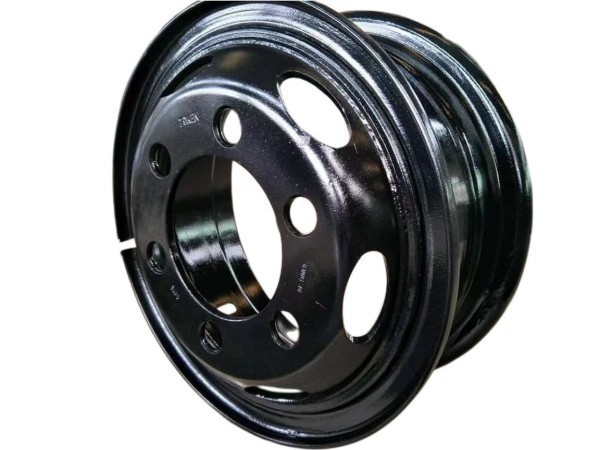

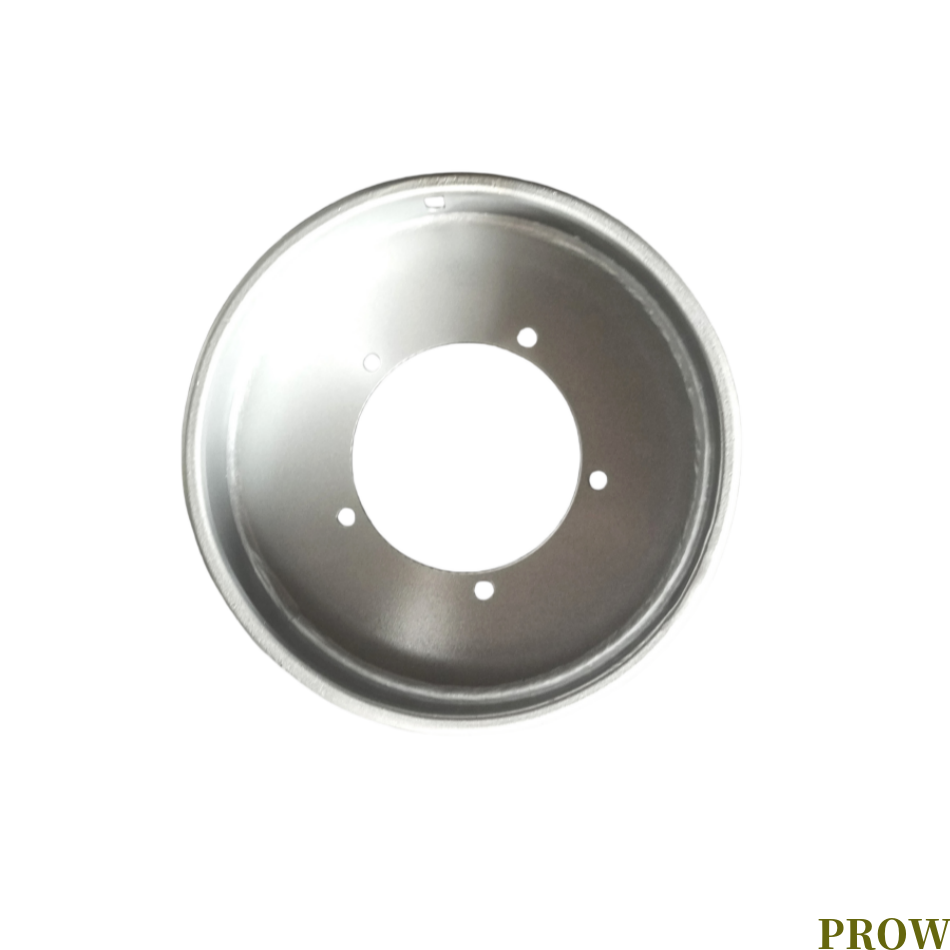

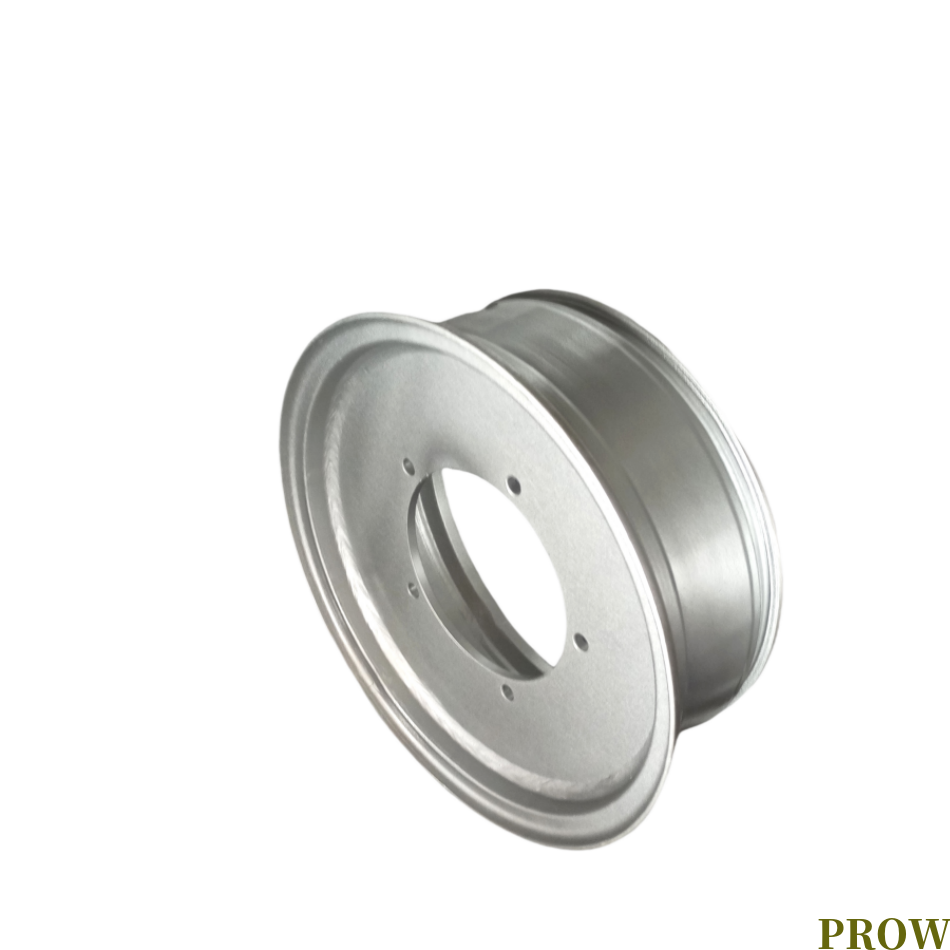

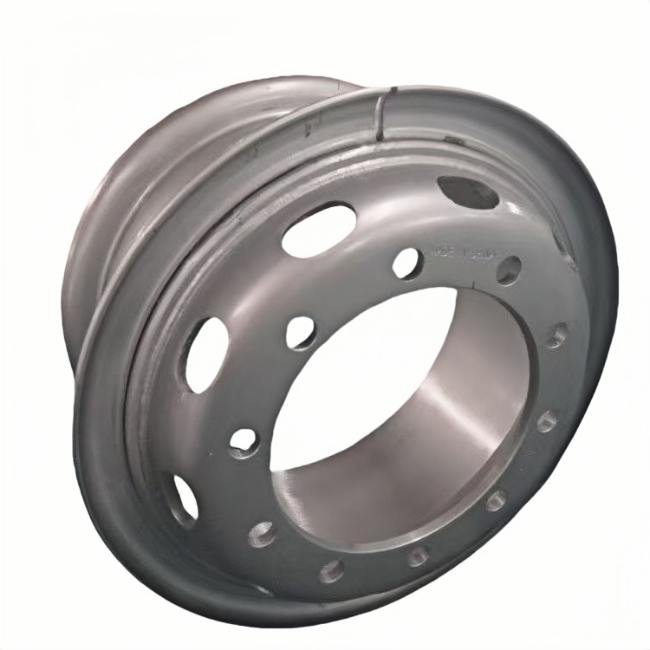

Truck wheels with inner tubes are mainly used in truck series. Truck wheels with inner tubes are air bearing containers for vibration reduction. The wheels are processed using assembly line business through processes such as circular, butt, double cutting, butt welding, expansion and contraction. The wheel has the characteristics of high strength and strong versatility.

Email

SIZE	BOLTHOLES			P.C.D	CBD OFFSET		DISK THICK	Rec.Type
	NO.	DIA	TYRE	(mm)	mm	mm	mm
5.50F-16:
5.50F-16	5	32.5	SR22	203.2	146	108	8	6.50R16
							10	6.50R16
							12	6.50R16
5.50F-16	5	32.5	SR22	203.2	146	112	8	6.50R16
							10	6.50R16
							12	6.50R16
5.50F-16	5	32.5	SR22	208	150	115-125	8	6.50R16
							10	6.50R16
							12	6.50R16
5.50F-16	6	32.5	SR22	222.25	164	115-125	8	6.50R16
							10	6.50R16
							12	6.50R16
5.50F-16	6	20.5	SR22	190	140	125	8	6.50R16
							10	6.50R16
							12	6.50R16
6.00G-16:
6.00G-16	5	32.5	SR22	203.2	146	127	8	7.00R16
							10	7.00R16
							12	7.00R16
6.00G-16	5	32.5	SR22	203.2	146	135	8	7.00R16
							10	7.00R16
							12	7.00R16
6.00G-16	5	32.5	SR22	208	150	127	8	7.00R16
							10	7.00R16
							12	7.00R16
6.00G-16	6	32.5	SR22	222.25	164	135	8	7.00R16
							10	7.00R16
							12	7.00R16
6.00G-16	6	20.5	SR22	190	140	135	8	7.00R16
							10	7.00R16
							12	7.00R16
6.50-16:
6.50-16:	6	20.5	SR22	190	140	127	10	7.50R16
							12	7.50R16
							14	7.50R16
6.50-16:	6	32.5	SR22	222.25	164	135	10	8.25R16
							12	8.25R16
							14	8.25R16
6.50-20:
6.50-20	6	20.5	SR22	190	140	145	12	8.25R20
							14	8.25R20
6.50-20:	6	32.5	SR22	222.25	164	145	12	8.25R20
							14	8.25R20
6.50-20:	8	26.5	SR18	275	221	145	12	8.25R20
							14	8.25R20
6.50-20:	8	26.5	SR22	275	214	145	12	8.25R20
							14	8.25R20
6.50-20:	8	32.5	1×45°	285	221	145	12	8.25R20
							14	8.25R20
7.00T-20:
7.00T-20	8	32.5	SR22	285	221	153	12	9.00R20
							14	9.00R20
7.00T-20	8	32.5	SR22	275	214	152	12	9.00R20
							14	9.00R20
7.00T-20	8	26.5	1x45°	275	220.5	152	12	9.00R20
							14	9.00R20
7.00T-20	8	26.5	1x45°	275	214	153	12	9.00R20
							14	9.00R20
7.00T-20	10	26.5	SR22	335	281	152	12	9.00R20
							14	9.00R20
7.00T-20	10	32.5	SR22	285.75	222	152	12	9.00R20
							14	9.00R20
7.00T-20	10	26.5	1×45°	285.75	220	152	12	9.00R20
							14	9.00R20
7.50V-20:
7.50V-20	8	32.5	SR22	285	221	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	8	32.5	SR22	275	214	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	8	26.5	1x45°	275	214	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	8	26.5	1X45°	275	220	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	10	32.5	SR22	285.75	222	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	10	26.5	1x45°	285.75	220.5	165	12	10.00R20
							14	10.00R20
							16	10.00R20
7.50V-20	10	26.5	1x45°	335	281	165	12	10.00R20
							14	10.00R20
							16	10.00R20
8.00V-20:
8.00V-20	10	26	1×45°	335	281	170	14	11.00R20
							16	11.00R20
8.00V-20	10	27	1×45°	335	281	170	14	11.00R20
							16	11.00R20
8.00V-20	10	32.5	SR22	285.75	222	170	14	11.00R20
							16	11.00R20
8.00V-20	10	26.5	SR18	335	281	170	14	11.00R20
							16	11.00R20
8.00V-20	10	26.5	1×45°	285.75	220.5	170	14	11.00R20
							16	11.00R20
8.50-20:
8.50-20:	10	26	1×45°	335	281	175	14	12.00R20
							16	12.00R20
8.50-20:	10	27	1×45°	335	281	175	14	12.00R20
							16	12.00R20
8.50-20:	10	32.5	SR22	285.75	222	175	14	12.00R20
							16	12.00R20
8.50-20:	10	26.5	SR18	335	281	175	14	12.00R20
							16	12.00R20
8.50-20:	10	26.5	1×45°	285.75	220.5	175	14	12.00R20
							16	12.00R20
8.50-24
8.50-24	10	27	SR18	335	281	180	14	1200R24
							16	1200R24
8.50-24	10	26	1×45°	335	281	180	14	1200R24
							16	1200R24

Product Tag:

Truck wheels Steel wheel with inner tube
